Red Square Lamp
|
Advanced marine lens technology provides a cool and even spread of soft light without glare or eye strain. Courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V).

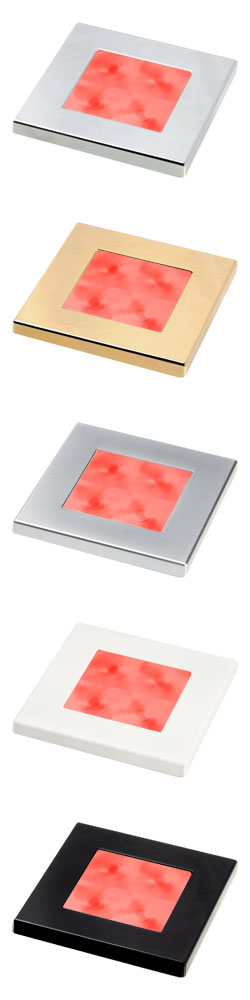

Each lamp is a completely sealed and waterproof unit, UV and corrosion resistant, perfectly suited for the demanding marine environment. Enhanced brightness versions are available in White and Warm White. These are three times brighter than regular soft White and Warm White square LED lamps. Surface mounting accessory rings provide numerous installation options with surface finishes to compliment or contrast the lamp rims. 12V Satin Chrome plated rim Part Number: 2XT 980 587-261 USA: 980 587-261 ________________________________________
12V Chrome plated rim Part Number: 2XT 980 587-271 USA: 980 587-271 ________________________________________
12V Gold plated rim Part Number: 2XT 980 587-231 USA: 980 587-231 ________________________________________
12V White plastic rim Part Number: 2XT 980 587-251 USA: 980 587-251 ________________________________________
12V Black plastic rim Part Number: 2XT 980 587-241 USA: 980 587-241 ________________________________________
24V Satin Chrome plated rim Part Number: 2XT 980 588-261 USA: 980 588-261 ________________________________________
24V Chrome plated rim Part Number: 2XT 980 588-271 USA: 980 588-271 ________________________________________
24V Gold plated rim Part Number: 2XT 980 588-231 USA: 980 588-231 ________________________________________
24V White plastic rim Part Number: 2XT 980 588-251 USA: 980 588-251 ________________________________________
24V Black plastic rim Part Number: 2XT 980 588-241 USA: 980 588-241 ________________________________________
Specifications
Material Description UV and impact resistant plastic Installation Pre-wired with 120mm of cable Protective System
IP 67 Mounting
Recess or surface mount Light Source
4 LEDs Operating Voltage 12V or 24V DC Power Consumption 0.5W Outline |
 |
 |
