Easy Fit LED Courtesy Lamps
|
|
Series: Slim Line |
|
Ultra compact, power saving and attractive LED lamps for a wide variety of interior and exterior lighting applications.

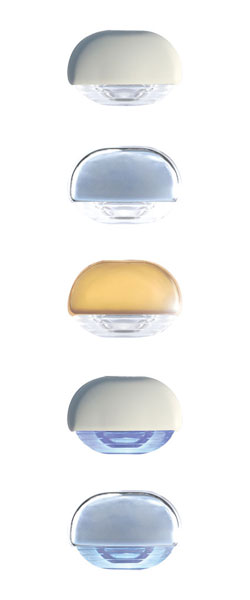

Blue or white light is radiated downward at an angle of 30� making these lamps ideal for illuminating onboard areas such as steps, stairs, toe kicks, storage areas, companion ways, deck fittings, signs and switches. Available with white, chrome and gold plated covers. MultivoltTM electronics ensure constant light output in 12V or 24V DC systems. Like all LED products, Easy Fit lamps are completely sealed, shock and vibration resistant and represent reliable �fit and forget� technology. White Lamp Chrome Cap
Part Number: 2JA 998 560-001 USA: 96302 ___________________________________________________
White Lamp White Cap
Part Number: 2JA 998 560-011 USA: 96303 ___________________________________________________
White Lamp Gold Cap Part Number: 2JA 998 560-081 ___________________________________________________
Blue Lamp Chrome Cap
Part Number: 2JA 998 560-041 ___________________________________________________
Blue Lamp White Cap
Part Number: 2JA 998 560-051 ___________________________________________________
Blue Lamp Gold Cap
Part Number: 2JA 998 560-091 ___________________________________________________
|
 |
|
Specifications
Material Description UV and impact resistant acrylic Installation
Pre-wired with 100mm of cable Protective System
Completely sealed Mounting
Single hole Foam gasket included Light Source

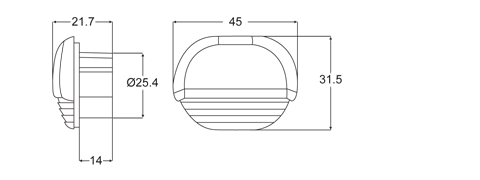

LED Operating voltage MultivoltTM 12-24V DC Power Consumption 0.5W Outline

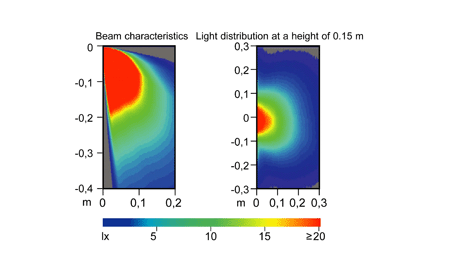

 Light Diagram
 |
|
