Material:
Stainless Steel or
Anodized Aluminum
Stainless Steel*

Mounting Method:
Surface Mount

Flange Diameter:
3.48" [88mm]

Depth:
.72" [18mm]

Suitable Environments:
  Dry,  Damp,  Wet

Emitting Angles:
Flood

Input:
6 to 30VDC

Power:
1.5W

Protection:
Reverse Polarity, Transient

Architectural
Industrial
Marine
SMART
No external drivers required. i2Systems SmartDriver technology inside every fixture. Retrofit compatible.

VERSATILE
Connects directly to 12/24V DC systems. Light output remains continuous over the entire 6 to 30V DC range.

EFFICIENT
Only 1.5 Watts per fixture. 50,000 hour operating life.

BRIGHT
Comparable light distribution and output to conventional sources. Produces even light, no LED dots or hot spots.

COOL
Advanced thermal technology and highly efficient design means cool to the touch operation.

STYLISH
5 finishes available with interchanging faceplates. Provides excellent shock and vibration resistance.

UNIQUE
9 LED Color options including Warm White.

----------------------------------------------------------------

IDEAL FOR:
• General Illumination
• Under counter lighting

0 TO 100% DIGITAL DIMMING
With a single expansion module, dim up to 18 fixtures of any color.

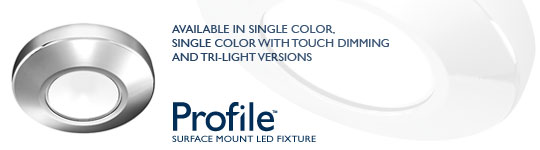

Profile
SML - (Y) L - SDI - (Z) 1

Profile Touch
SMT - (Y) L - SDI - (Z) 1

Profile Tri-Light
SML - (YYY) L - SDI - (Z) 1

LED Color (Y):
 1 White
 2 Warm White
 3 Green
 4 Blue
 5 Royal Blue
 6 Cyan
 7 Red
 8 Red-Orange
 9 Amber

Availability:
Profile: 1-9 (ALL)
Profile TOUCH: 1-9 (ALL)
Profile Tri-Light: 1,2,3,4,6,7
Finish (Z):


1 Polished Chrome
WITH PVD COATING
2 Polished Gold
WITH PVD COATING
3 Powder Coated White
4 Brushed Nickel
WITH PVD COATING
5 Powder Coated Off-White
