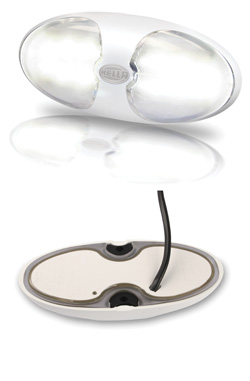

12 LED Multi-purpose Lamp



The compact 12 LED DuraLed® lamp provides class leading efficiency and an ultra wide light spread.

Suitable for a variety of applications, interior or exterior, wet or dry, the 12 LED DuraLed® draws less than 2.5W (<0.20A @12V ) offering substantial power saving onboard compared to incandescent lighting.

A combination of the unique design and precision Hella marine optics provides an ultra wide spread of intense white light without glare or eye strain.

Each lamp is completely sealed unit, highly resistant to vibration, saltwater and impact.

The proven DuraLed® surface mounting system provides for robust and secure installations, with no external fastenings.
500mm of twin core marine cable is pre-wired and sealed into each lamp.

Hella marine DuraLed® lamps represent the latest in class leading energy efficiency and maintenance free
‘fit and forget’ technology.


White 12 LED DuraLed, 8-28V DC
Part Number:
2JA 959 700-101
USA: 959700101
____________________________________________

Warm White 12 LED DuraLed, 8-28V DC
Part Number:
2JA 959 700-701
USA: 959700701
____________________________________________

Specifications

Material Description
UV resistant enhanced impact acrylic

Installation
Surface mount

Protective System
IP 67 - Completely sealed

Light Source
LED

Color Temperature
5000K (White) / 3000K (Warm White)

Cable
Pre-wired with 500mm of twin core marine cable

Operating Voltage
Multivolt 8-28V DC

Power Consumption
<2.5W  ( <0.20A @ 12V / <0.10A @ 24V )

Weight
115g (including cable)

Outline
